Peerlogic connects to Open Dental through the Open Dental API. To give Peerlogic access, someone at your practice adds the Peerlogic Customer API key in your own Open Dental software and enables it. This takes a few minutes, and you do it when you first connect and again whenever Peerlogic gives you a new key, for example when your practice starts or stops using Aimee for scheduling. For example, the office manager at Arizona Bright Care Dental adds the key once in Open Dental for the Phoenix clinic, and Peerlogic starts syncing that clinic’s schedule.

​
When to use this

  • Your practice is connecting Open Dental to Peerlogic for the first time.
  • Peerlogic gave you a new Customer API key, for example because your practice is adding or removing Aimee.
  • Peerlogic Support asked you to check or re-enable the Peerlogic key.

​
Prerequisites

  • The Peerlogic Customer API key for your practice. Your Peerlogic onboarding contact gives it to you, or, if you’re connecting Open Dental yourself in Peerlogic under Practice Settings > Integrations, click Copy next to the key in the setup instructions. Keep that Peerlogic window open while you work in Open Dental.
  • An Open Dental user with permission to open Setup > Advanced Setup > API.
  • If you have more than one clinic, the name of the clinic you’re connecting to Peerlogic.
  • If you host Open Dental on your own server instead of Open Dental Cloud, the Open Dental eConnector must be installed and running on that server. Open Dental Cloud practices don’t need to install anything.
Treat the Customer API key like a password. Paste it only into Open Dental, and don’t send it by email or text message to anyone outside your practice and Peerlogic.

​
Procedure

1

Open the API setup

In Open Dental, go to Setup > Advanced Setup > API. If you have more than one clinic, make sure you’re working in the clinic you’re connecting to Peerlogic.

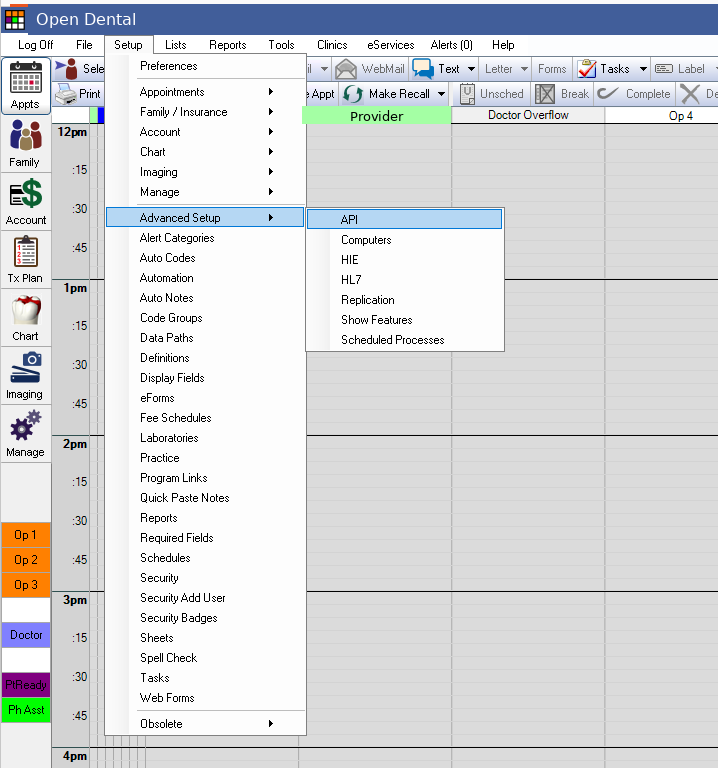

Open Dental with the Setup menu open and Advanced Setup, then API, highlighted
2

Click Add Key

In API Setup, click Add Key in the lower left.

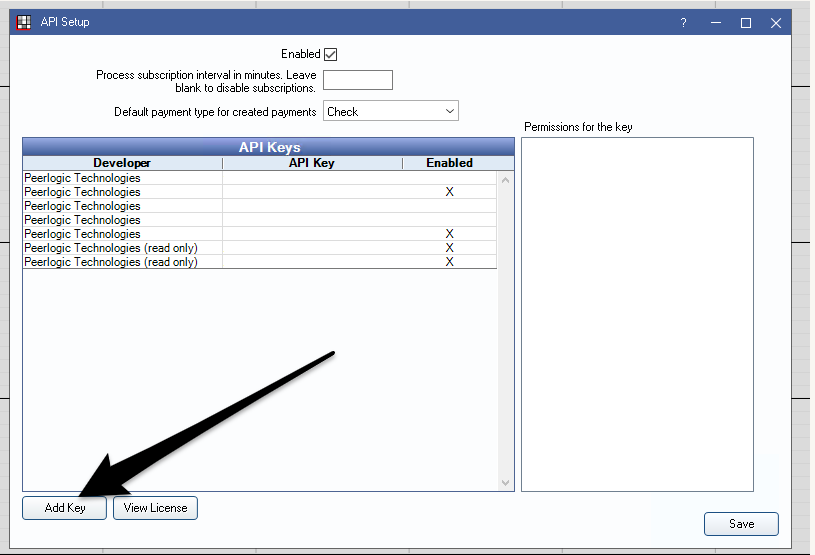

Open Dental API Setup window with the API Keys list and an arrow pointing to the Add Key button
3

Paste the Customer API key

In Assign API Key, paste the Peerlogic Customer API key into Enter API key, then click OK.

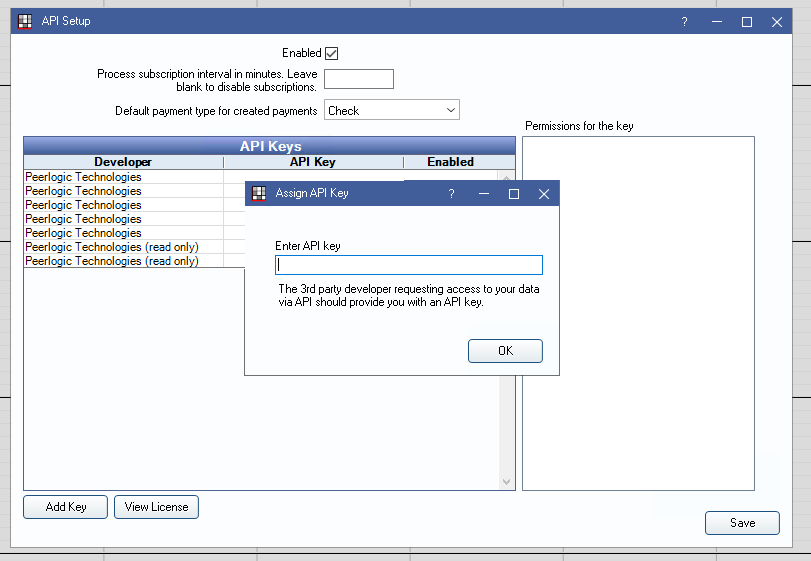

Open Dental Assign API Key dialog with an empty Enter API key field and the OK button
4

Accept the license

Open Dental shows its API end user license agreement. Read it, then click Accept.

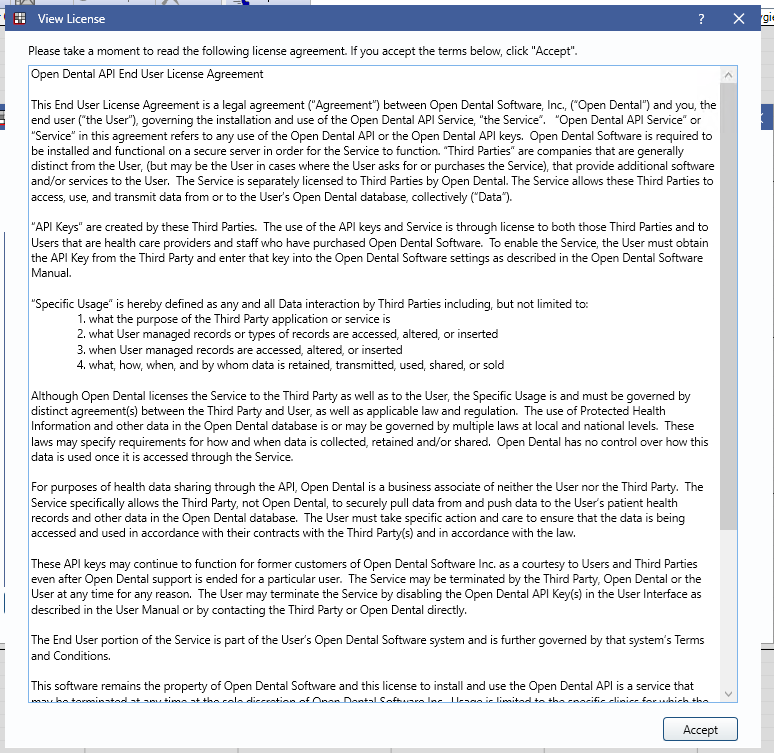

Open Dental API End User License Agreement window with the Accept button
5

Confirm the key was assigned

Open Dental shows Successfully assigned API key. Click OK.

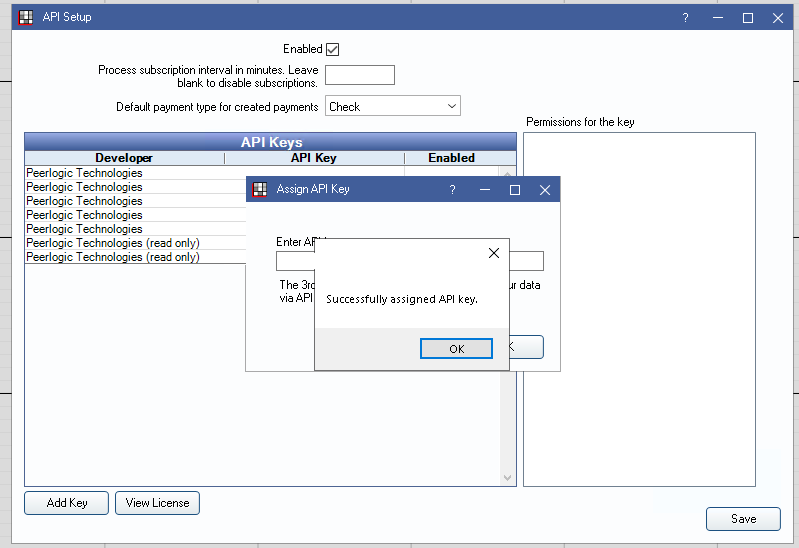

Open Dental Successfully assigned API key message over the Assign API Key dialog
6

Check that the key is enabled

In the API Keys list, find the new Peerlogic Technologies key and make sure the Enabled column shows an X. Then let Peerlogic know the key is enabled, or return to the Peerlogic window and click Connect (or Migrate if you’re switching portal types).

​
Exceptions

Go back to Setup > Advanced Setup > API and check that:
  • The Peerlogic Technologies key you just added shows an X under Enabled.
  • You pasted the whole key, with no extra spaces, and it’s the most recent key Peerlogic gave you.
  • You added the key in the clinic you’re connecting to Peerlogic.
Then try Connect or Migrate again in Peerlogic.
Sometimes, after a practice starts using Aimee for scheduling, Open Dental needs the key refreshed before Peerlogic can book appointments. If you host Open Dental on your own server, first restart the eConnector service. Then:
  1. Go to Setup > Advanced Setup > API.
  2. Double-click the Peerlogic Technologies key that Peerlogic Support names.
  3. In API Key Edit, click Disable Key, then click Enable Key.

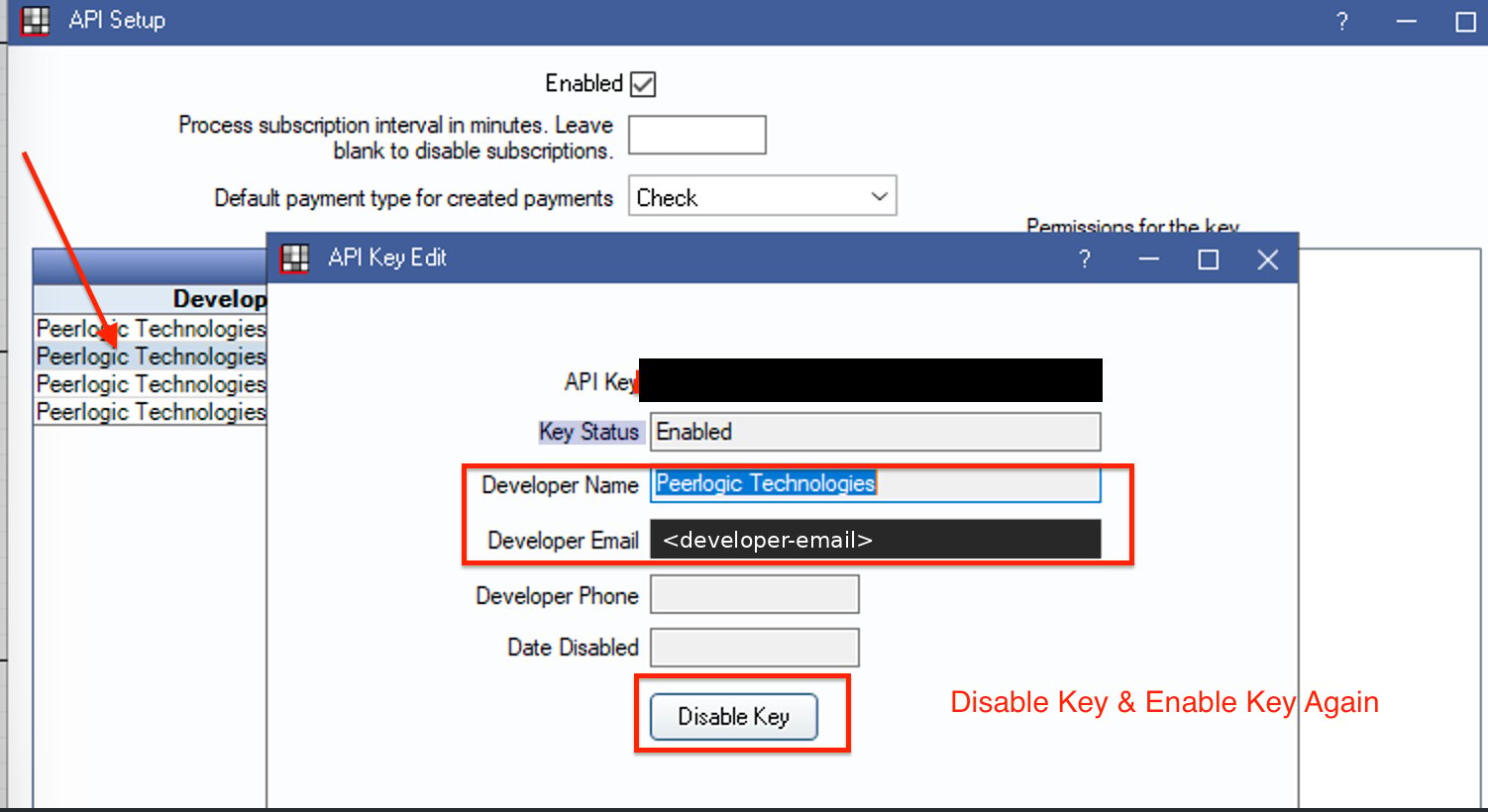

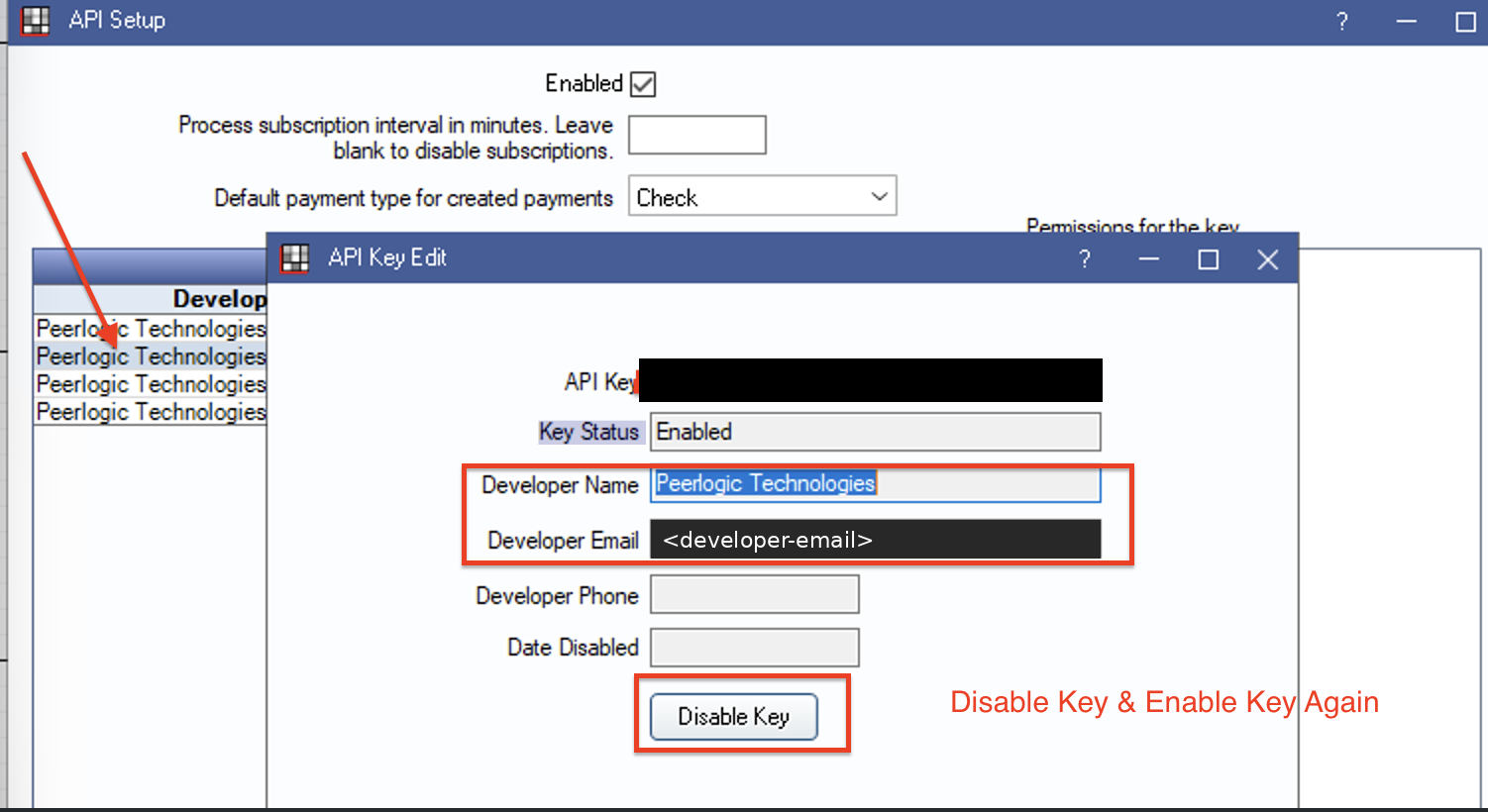

Open Dental API Key Edit window for a Peerlogic Technologies key, with the key value and developer email hidden and the Disable Key button highlighted
Your API Keys list may show more than one Peerlogic Technologies line from earlier connections. When Peerlogic issues a new key, it disables the previous one on its side. Leave the older lines as they are unless Peerlogic Support asks you to change them.

​
Verify

  • In Open Dental, the new Peerlogic Technologies key shows an X under Enabled.
  • In Peerlogic, Practice Settings > Integrations shows the Open Dental card as Connected.
